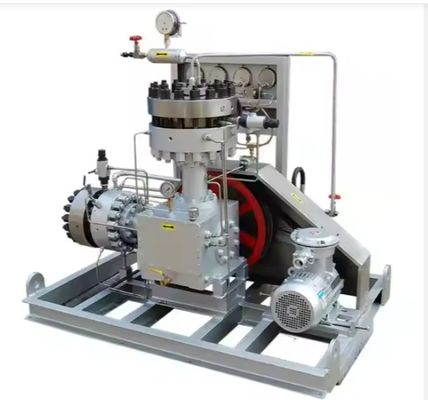

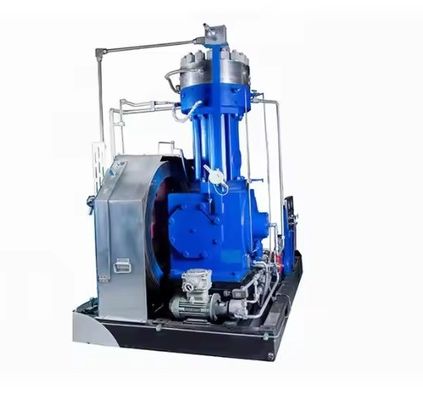

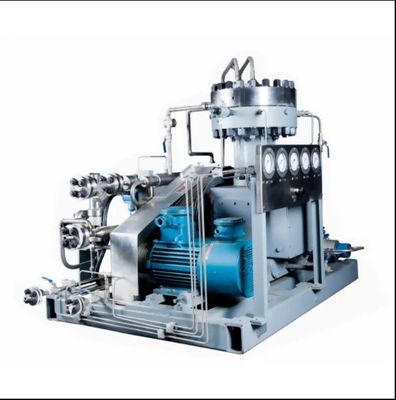

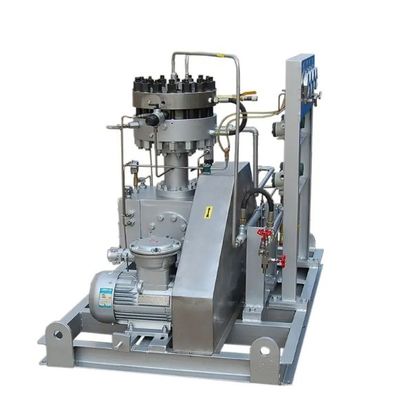

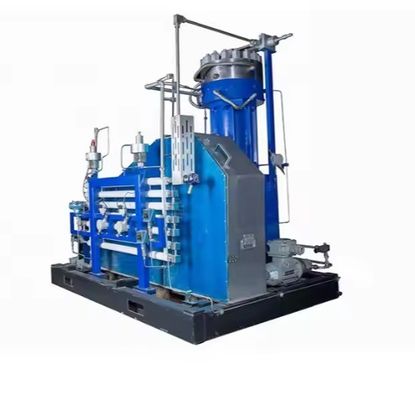

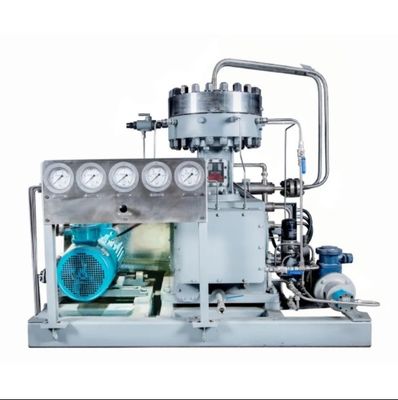

Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving

CN¥19,070.87/pieces >=1 pieces
Price
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving
Features Gallery Product Description Request A Quote
Features
Specifications
Type: L-shape Diaphragm Compressor
Configuration: Other
Power Source: AC Power
Place Of Origin: Jiangsu, China
Brand Name: ChunMiao
Model Number: GL130
Voltage: Customized
Dimension(l*w*h): 4200x2200x2300
Warranty: 1 Year
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Core Components: Other
Gas Type: Air
Weight (KG): 9000
Cooling Method: WATER COOLED
Highlight:

Co2 Gas Compressor

,

M3z Series Co2 Gas Compressor

,

Hydrogen Air Compressors
Basic Infomation
Payment & Shipping Terms
Product Description
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 0
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 1
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 2
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 3
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 4
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 5
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 6
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 7
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 8
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 9
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 10
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 11
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 12
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 13
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 14
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 15
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 16
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 17
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 18
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 19
Diaphragm Compressor Gas Air Compressors Hydrogen M3z Series Co2 Gas Compressor With Direct Driving 20
Model
Volume flow
Nm³/h
Inlet pressure
MPa
Exhaust pressure
MPa
Revolutions
rpm
Motor power
kW
Cooling water flow
m³/h
Dimensions
(L×W×H)mm
Weight
ton
GL130/0/1.5
80-1400
0-1.2
1.5
400
18.5-37
≤3.2
2600×1630×1850
4
GL130/0.25/2.5
160-1300
0.25-2.0
2.5
400
22-37
≤3.2
2600×1630×1850
4
GL130/0.3/3
140-1200
0.3-2.5
3
400
30-37
≤3.2
2600×1630×1850
4
GL130/0/4
40-200
0-0.4
4
400
22-37
≤3.2
2600×1630×1850
4
GL130/0/6
30-160
0-0.45
6
400
22-37
≤3.2
2600×1630×1850
4
GL130/0.2/16
40-180
0.2-1.2
16
400
22-37
≤3.2
2600×1630×1850
4
GL130/0/20
40-45
0-0.012
20
400
22
≤1.8
2240×1490×1850
4
GL130/0.01/20
28-56
0.01-0.1
20
400
18.5-22
≤1.8
2240×1490×1850
4
GL130/0/20
20-80
0-0.2
20
400
15-37
≤3.2
2600×1630×1850
4
GL130/0.1/25
55-100
0.1-0.2
25
400
22-37
≤3.2
2600×1630×1850
4
GL130/2/80
40-150
2.0-6.0
80
400
22-37
≤3.2
2600×1630×1850
4

2H-shape Diaphragm compressor

High Purity Explosive Proof Hydrogen Refueling Station Diaphragm Compressor
Support customization，Factory direct sales，Intelligent and efficient，ODM-OEM and more.
For more information, please contact us.
