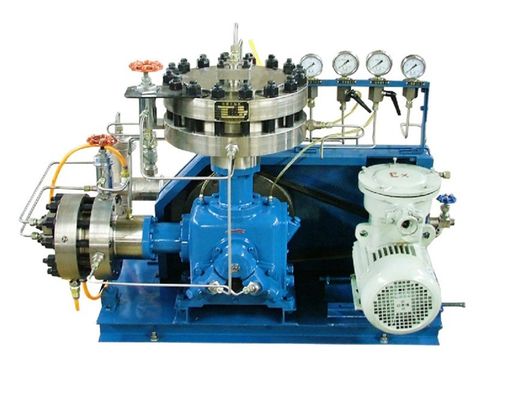

Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven

CN¥19,090.20/pieces >=1 pieces
Price
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Z-shape Diaphragm Compressor
Configuration: Other
Power Source: AC Power
Place Of Origin: Jiangsu, China
Brand Name: ChunMiao
Model Number: GZ130
Voltage: Customized
Dimension(l*w*h): 4200x2200x2300
Warranty: 1 Year
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Core Components: Other
Gas Type: Air
Weight (KG): 9000
Cooling Method: WATER COOLED
Highlight:

Gas Air Diaphragm Compressor

,

Direct Driven Diaphragm Compressor

,

Hydrogen Diaphragm Compressor
Basic Infomation
Payment & Shipping Terms
Product Description
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 0
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 1
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 2
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 3
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 4
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 5
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 6
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 7
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 8
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 9
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 10
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 11
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 12
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 13
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 14
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 15
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 16
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 17
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 18
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 19
Diaphragm Compressor Gas Air Hydrogen Customizable Machines Process By-k1 Model Direct Driven 20
Model
Volume flow
Nm³/h
Inlet pressure
MPa
Exhaust pressure
MPa
Revolutions
rpm
Motor power
kW
Cooling water flow
m³/h
Dimensions
(L×W×H)mm
Weight
ton
GZ130/0/1.5
40-700
0-1.2
1.5
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/0/2
28-600
0-1.5
1.0-2.0
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/0.3/3
70-600
0.3-2.5
3
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/0.4/4
70-700
0.4-3.5
4
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/0.5/5
70-700
0.5-4.5
5
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/0.7/7
60-650
0.7-6.5
7
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/1.2/16
46-650
1.2-14.0
16
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/1.3/20
40-650
1.3-16.0
20
400
15-18.5
≤1.4
1800×1290×1900
2.6
GZ130/5/45
50-325
5.0-20.0
45
430
<22
≤1.8
2100×1500×1900
3
GZ130/8/80
36-600
8.0-70.0
80
400
22
≤1.8
2100×1500×1900
3.5

2H-shape Diaphragm compressor

High Purity Explosive Proof Hydrogen Refueling Station Diaphragm Compressor
Support customization,Factory direct sales,Intelligent and efficient,ODM-OEM and more.
For more information, please contact us.
